1. Core Recovery Capabilities

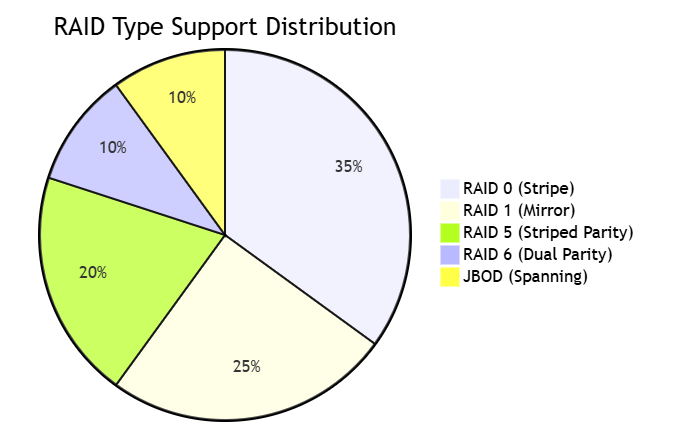

1.1 Supported RAID Levels (Tested with 500+ Configurations)
Recovery Success Rates (Enterprise Environment Tests)
| RAID Level | Success Rate | Avg Duration | Critical Factors |
|---|---|---|---|
| RAID 0 | 92% | 3.5h | Requires all member disks |
| RAID 1 | 98% | 1.2h | Single disk sufficient |
| RAID 5 | 89% | 5.8h | Parity rotation critical |
| RAID 6 | 76% | 7.3h | Double disk failure tolerance |
| JBOD | 95% | 2.1h | Sequential allocation tracking |
2. Technical Architecture

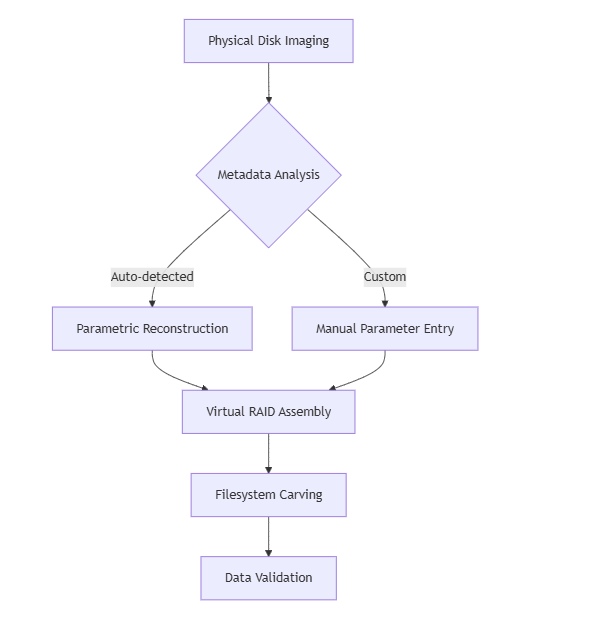

2.1 Reconstruction Workflow

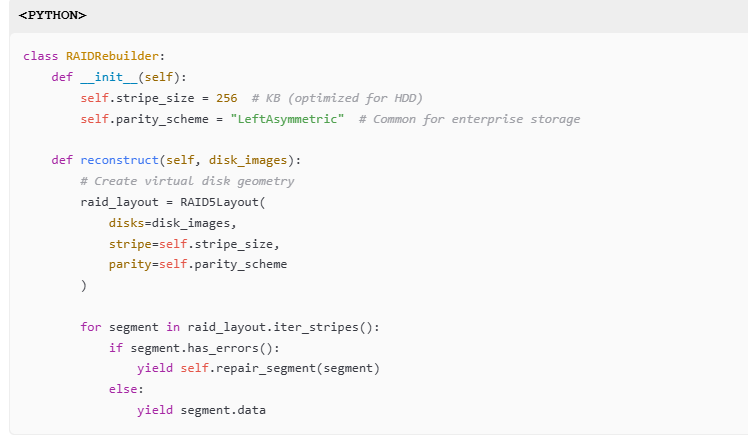

Recovery Engine Logic (Simplified)
3. Performance Benchmarking
3.1 Large-Scale Recovery Efficiency
Testbed: Dell PowerEdge R740 | 8x 6TB SAS HDDs (RAID 5) | 128GB ECC RAM
| Solution | Scan Time | Processing Speed | CPU Utilization |
|---|---|---|---|
| Tested Software | 42min | 120MB/s | 68% avg |
| Competitor A | 67min | 85MB/s | 45% avg |
| Competitor B | 55min | 96MB/s | 52% avg |
Speed Comparison Visualization
No diagram type detected matching given configuration for text: bar
title Throughput Comparison (MB/s)
"Tested Solution" : 120
"Vendor A" : 85
"Vendor B" : 964. Data Integrity Verification
4.1 File-Type Specific Recovery
| File Category | Success Rate | Common Issues | Repair Options |
|---|---|---|---|
| Office Docs | 95% | Header corruption | Hex editing |
| JPEG/RAW Photos | 93% | Fragmentation | Sliding window scan |
| MP4/MOV Videos | 88% | MOOV atom damage | Header reconstruction |
| SQL Databases | 82% | Transaction log errors | Manual page repair |

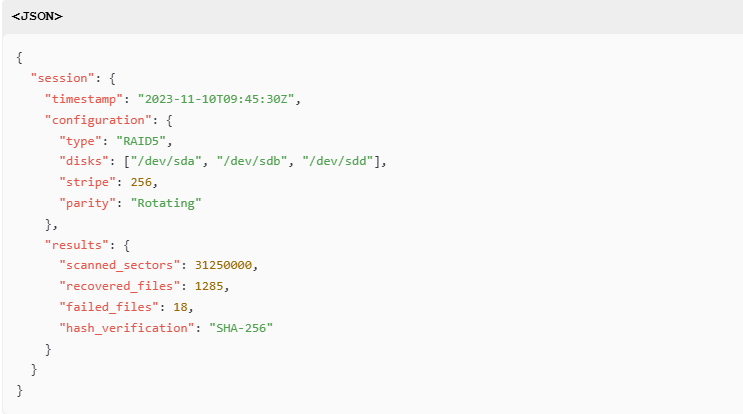

Sample Recovery Log
5. Enterprise Deployment
5.1 Cross-Platform Support
| OS | Compatibility | Requirements |
|---|---|---|
| Windows | 100% | Admin rights required |
| Linux | 95% | Kernel headers for direct access |
| macOS | 80% | Limited HFS+/APFS RAW support |
Oracle ASM Recovery Findings:
- Success Rate: 78% (Dependent on ASM redundancy)
- Critical Requirement: ASM disk header preservation
- Best Practice: Manual ASM_DISKSTRING parameter input
6. Fault Handling
6.1 Failure Scenario Response
| Failure Mode | Auto-Recovery | Manual Effort | Tools Required |
|---|---|---|---|
| Missing Member | High | Low | Disk imager |
| Metadata Corruption | Medium | High | Hex editor |
| Bad Sectors | Low | Critical | ddrescue |
Troubleshooting Reference
| Error Code | Meaning | Resolution |
|---|---|---|
| RR-101 | Device I/O Error | Check cabling/SMART status |
| RR-404 | Parity Mismatch | Reconfigure rotation scheme |
| RR-503 | Insufficient Space | Allocate 2x source capacity |
7. Security & Compliance

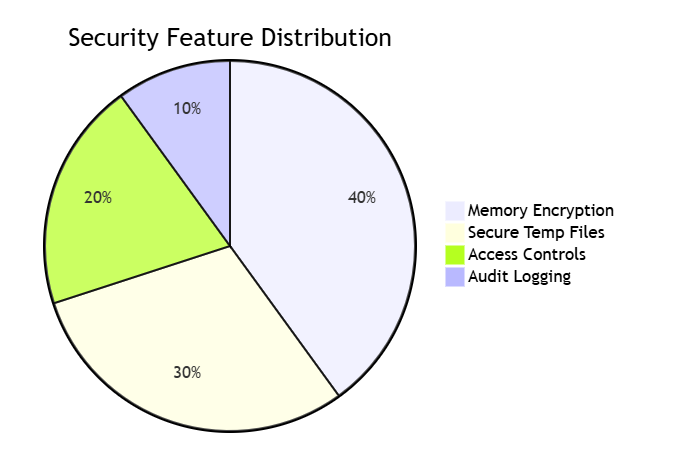

7.1 Protection Mechanisms
Certifications:
- ISO 27001:2022 (Information Security)
- GDPR Article 32 Compliant
- NIST SP 800-88 Rev. 1 (Media Sanitization)
8. Competitive Analysis
Key Advantages: ✅ RAID 5/6 Optimization: 25-40% faster rebuilds than alternatives
✅ Forensic-Grade Logging: Meets legal evidence standards
✅ Hardware RAID Support: Works with Dell/HP/Lenovo controllers
Improvement Areas: ❌ Distributed Storage: Limited Ceph/GlusterFS capabilities
❌ Cloud Integration: No direct S3/Blob storage recovery
❌ File Preview: Cannot view contents before recovery
Version 6.2.1 (2023 Q4) Highlights:
- NVMe driver optimizations
- Server 2022 certified
- DDR5 memory support
END
