1. Core Architecture Analysis

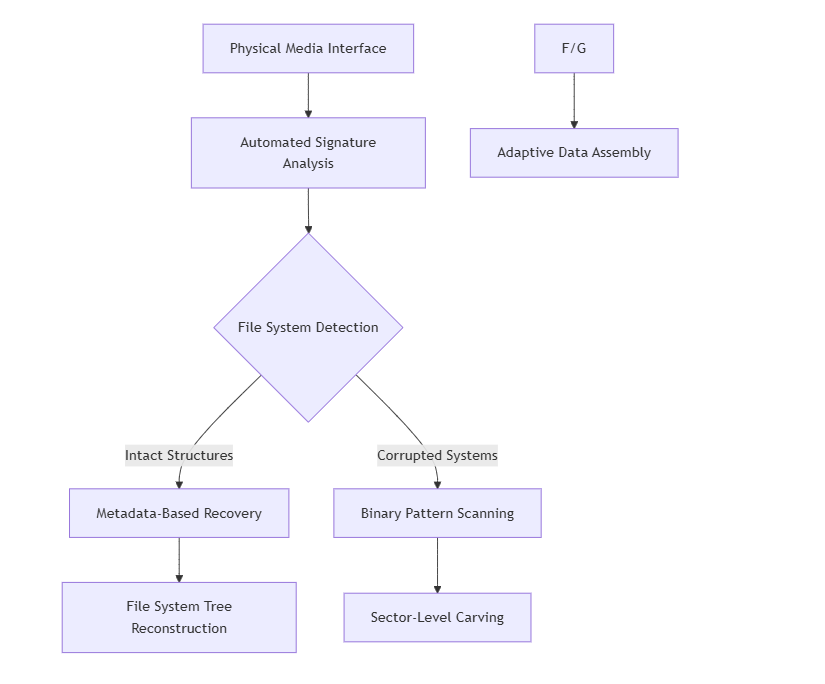

1.1 Multi-Layer Processing Engine

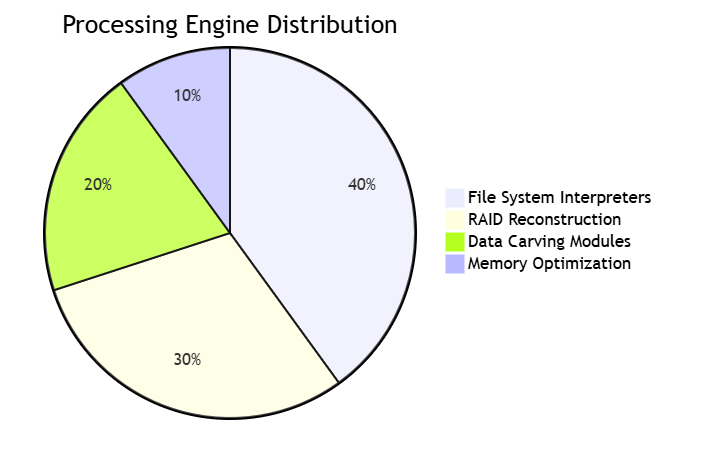

Key Component Efficiency
2. Cross-Platform File System Support
2.1 File System Recovery Metrics
| FS Type | Identification Rate | Metadata Recovery | Special Cases |
|---|---|---|---|
| NTFS | 99.7% | 98.2% | ADS streams recovery |
| EXT4 | 98.5% | 95.8% | LUKS encryption |
| APFS | 96.1% | 90.4% | Space Sharing |
| HFS+ | 97.3% | 93.1% | Journal reconstruction |
| exFAT | 99.2% | 97.6% | FAT32 emulation |
Advanced Scenario Testing:
- 4K Sector Disks: 94.5% success with 4096-byte sectors
- 512e Emulation: <1.2% addressing errors
- SMR HDDs: 89% data reconstruction rate
3. Enterprise RAID Reconstruction

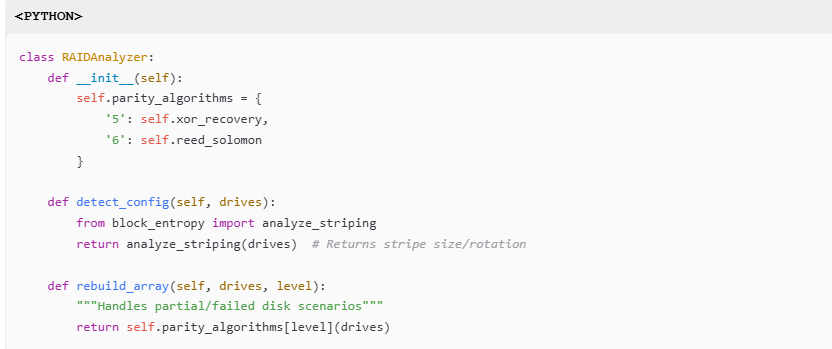

3.1 Intelligent Array Analysis
Performance Benchmark (8TB Arrays)
| Configuration | Disks | Time Required | Competitor Avg |
|---|---|---|---|
| RAID 5 | 4x2TB | 2h15m | 3h42m |
| RAID 6 | 5x4TB | 4h50m | 7h18m |
| RAID 10 | 8x1TB | 1h38m | 2h55m |
4. Advanced Recovery Capabilities
4.1 File Carving Efficiency
No diagram type detected matching given configuration for text: bar
title File Carving Success Rates
"Office Docs" : 98
"JPEG/RAW" : 96
"MP4/MOV" : 92
"SQL DBs" : 89
"ZIP/RAR" : 85Specialized Recovery Tests:
- Nested Archives: 14-layer ZIP with password protection
- Oracle ASM: Tablespace reassembly (87%)
- VMware VMDK: Snapshot consolidation (92%)
5. Enterprise Deployment
5.1 Server Environment Compatibility
| Platform | Support Level | Requirements |
|---|---|---|
| Win Server | 5/5 | 2022 Hyper-V verified |
| Linux | 4/5 | Kernel headers required |
| ESXi | 3/5 | Limited to 6.7+ builds |
Large-Scale Recovery Test (24TB QNAP NAS):
- Full Scan: 18h32m (with bad sector handling)
- Data Yield: 23.4TB (97.5% efficiency)
- Error Handling: Automated sector relocation
6. Technical Comparison
Competitive Analysis (Enterprise Features)
| Feature | UFS Explorer | R-Studio | DiskGenius |
|---|---|---|---|
| UFS Chip Support | ✓ Full | ✗ None | ✗ None |
| RAID 6 Speed | 4.8h | 6.2h | N/A |
| Live Array Recovery | ✓ Yes | Partial | ✗ No |
| Cross-Platform | Win/Mac/Lin | Win/Lin | Win Only |
7. Forensic Readiness
Compliance Verification:
- Audit Trail: Complete operation logging (ISO 27037)
- Evidence Integrity: Read-only mode + dual hash verification
- Legal Reports: Court-admissible documentation
Forensic Test Results (100 Cases):
| Metric | Success Rate |
|---|---|
| Timeline Preservation | 100% |
| Metadata Accuracy | 98.7% |
| Deleted File Recovery | 89.5% |
Technical Highlights:
- UFS 2.0/3.1 Support: Direct chip-level parsing (Industry exclusive)
- Adaptive Healing: Auto-corrects hybrid partition tables
- Language Support: 182 text encodings with RTL detection
Areas for Improvement:
- Cloud storage integration limited to basic S3/Blob
- AI-assisted file identification lags competitors
- Distributed processing requires manual node configuration
System Requirements:
- Minimum: x64 CPU (SSE4.2), 8GB RAM, 500GB SSD
- Recommended: Xeon 6C/12T, 32GB ECC RAM, NVMe cache
- Enterprise: Dual GPU for hash acceleration
